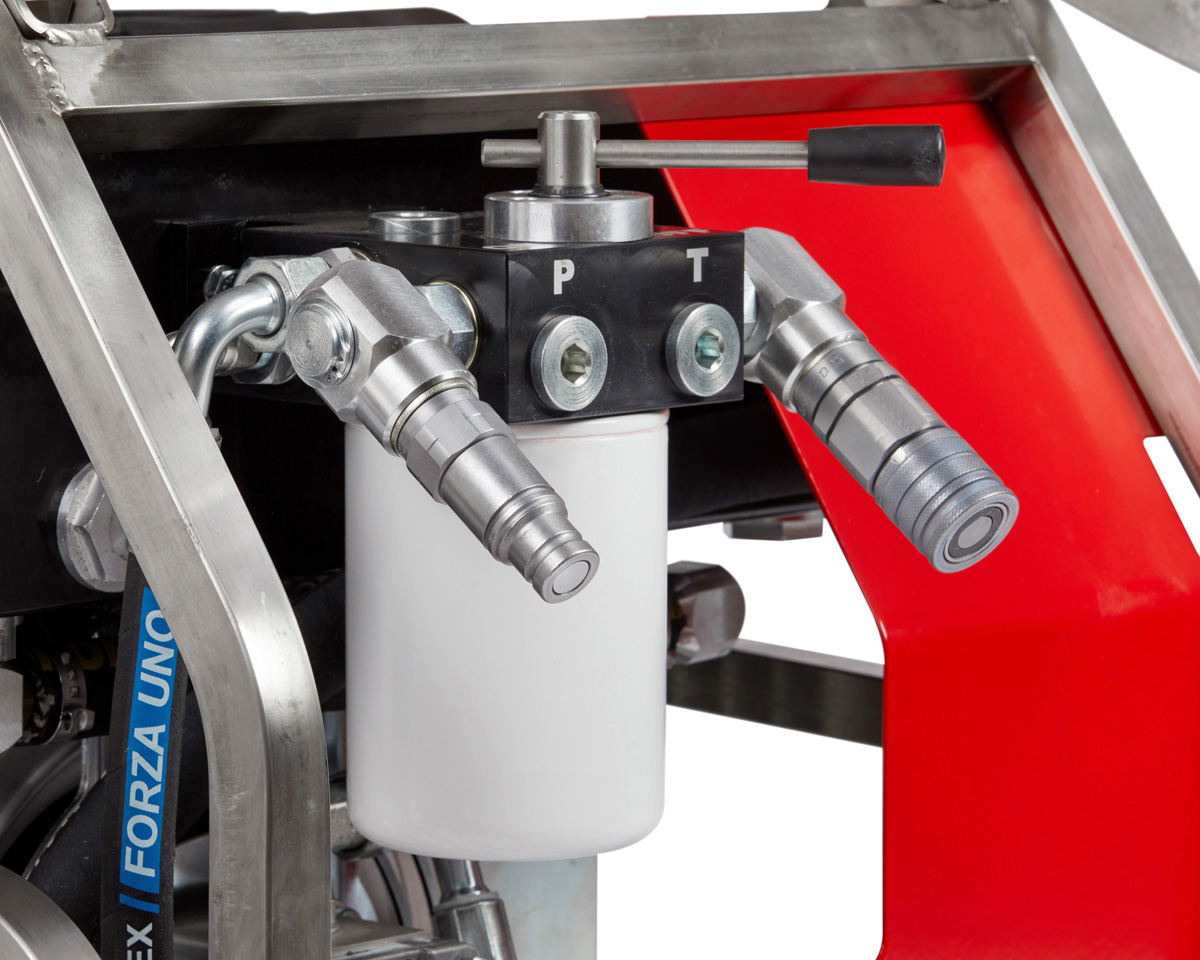

Joint Zone hydraulic power packs are built to last and deliver optimal performance for a range of heavy-duty tasks. These powerful units feature durable stainless steel frames (excluding Dinamo) and anti-vibration shock mounts, which suspend all parts and reduce vibrations for smooth and precise hydraulic operation. Quick couplers are installed on impact-free swivel fittings making it easy to connect and disconnect hydraulic hoses, saving you time and effort. And with a central lifting hook, these hydraulic power packs can be moved around your workspace with ease. Whether you’re working in construction, forestry, marine or any other industry that requires hydraulic power, Joint Zone hydraulic power packs are a reliable choice.

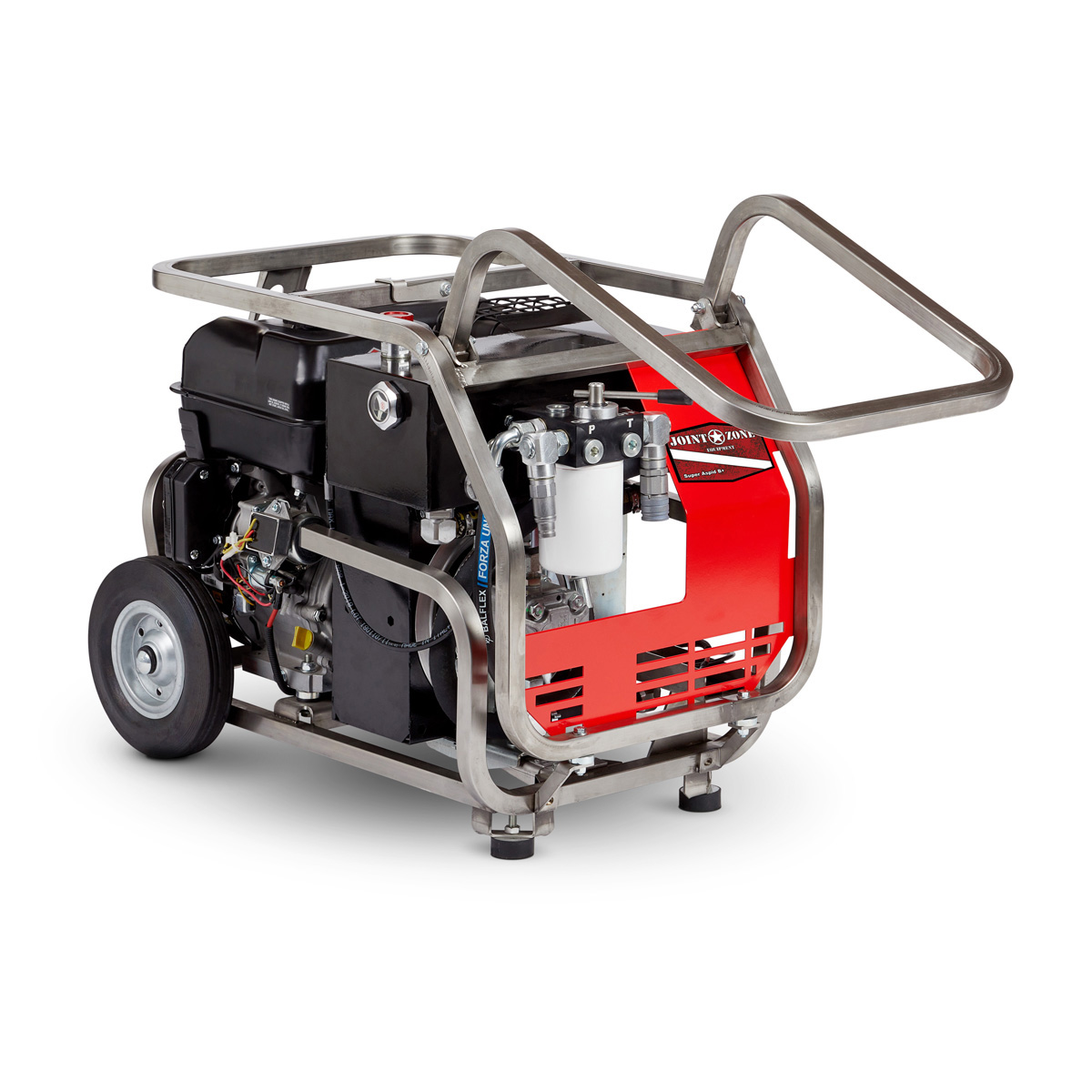

The Joint Zone Aspid hydraulic power pack is available with two different engine variations offering a maximum flow of 8 gallons per minute. The Aspid H with a 13hp Honda engine and the Super Aspid B with a 14hp Briggs & Stratton. The Aspid offers excellent transportability, robustness, quietness, reliability and a superior construction quality that guarantees the best performance in the most demanding applications.
Key Features:
Purchase this tool from one of our authorized dealers:
| ASPID H | SUPER ASPID B | |
| Weight (lbs) | 143 | 154 |
| Dimensions LxWxH (in) | 28x20x22 | 28x20x22 |
| Flow (gpm) | 8 | 8 |
| Pressure (psi) | 2000 | 2000 |
| Starter | Recoil | Recoil & Electric |
| Engine | 13hp Honda | 14hp B&S |

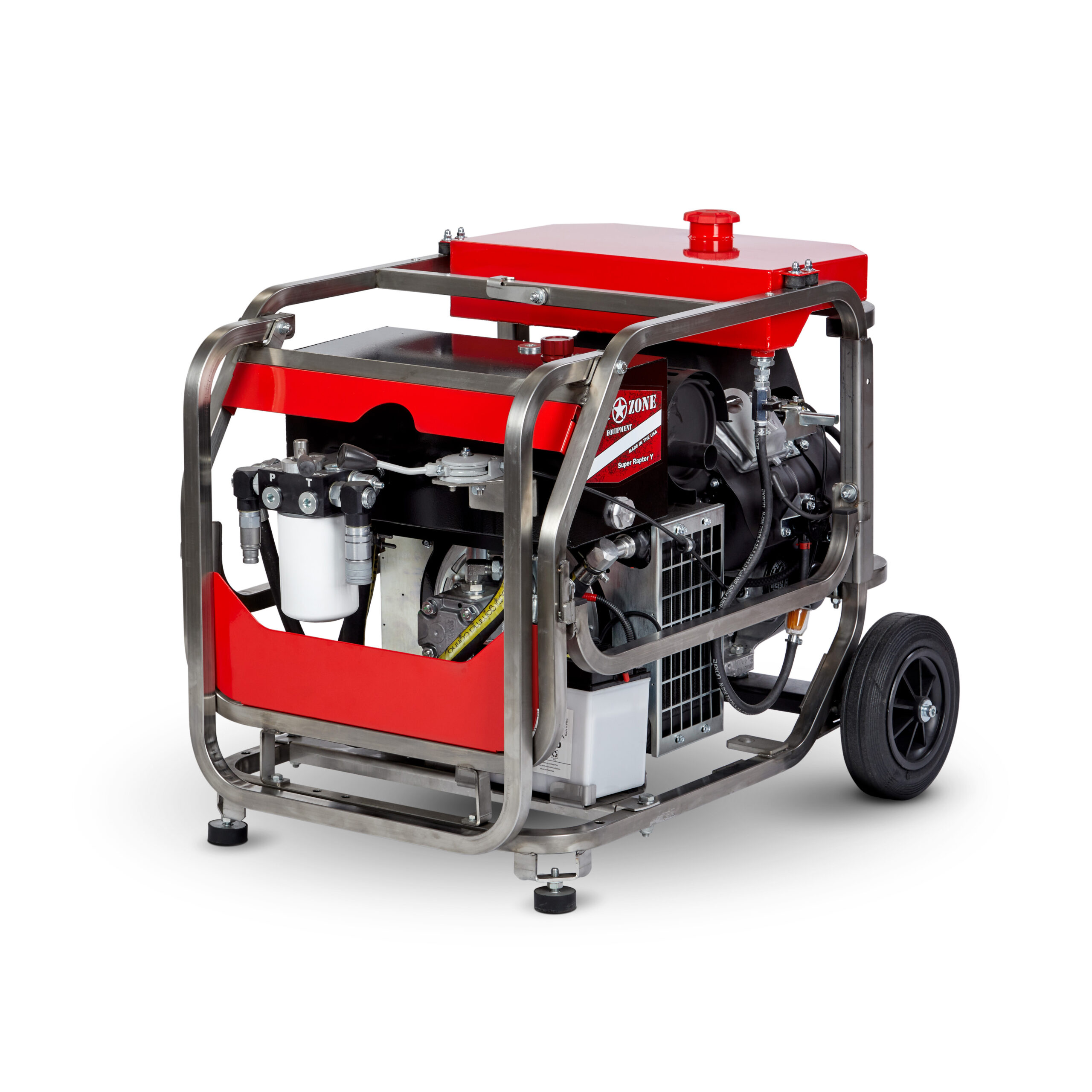

The Joint Zone Raptor hydraulic power pack is available in three different engine variation offering a maximum flow of 10 gallons per minute and one engine option offering a maximum flow of 12 gallons per minute. The Raptor B with an 18hp Briggs & Stratton engine, Raptor Y with an 18hp Yamaha engine, and the Raptor K offering a 10.5hp Kohler diesel engine and 10 gpm variations and the Joint Zone Super Raptor Y, 23hp Yamaha, for 12 gpm. The Raptor hydraulic power packs are the ultimate power packs for all your hydraulic needs. With a durable Stainless Steel Frame and convenient folding handles, this equipment is designed to be rugged, yet portable, making it ideal for use in any environment.
Key Features:
Purchase this tool from one of our authorized dealers:
| RAPTOR B | RAPTOR Y | RAPTOR K | Super Raptor Y | |
| Weight (lbs) | 243 | 243 | 198 | 243 |
| Dimensions LxWxH (in) | 33X24X26 | 33X24X26 | 33X24X26 | 33X24X26 |
| Flow (gpm) | 10 | 10 | 10 | 12 |
| Pressure (psi) | 2000 | 2000 | 1900 | 2000 |
| Starter | Recoil & Electric | Electric | Recoil & Electric | Electric |
| Engine | 18hp B&S Vanguard | 18hp Yamaha | *10.5hp Kohler | 23hp Yamaha |

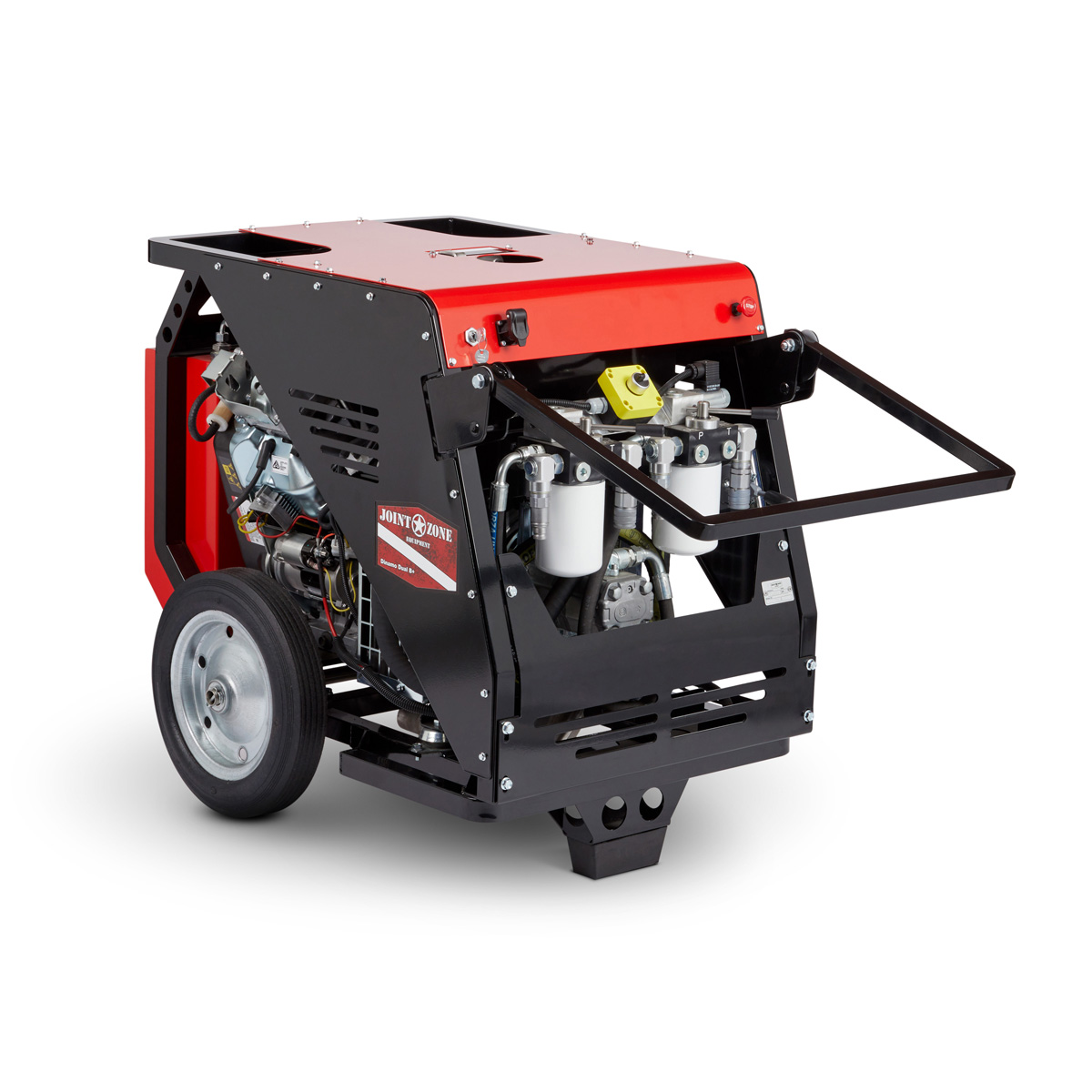

The Dinamo B is a double circuit hydraulic power pack equipped with powerful 35hp Briggs & Stratton motor that run two tools up to 10 gallons per minute or one tool up to 20 gallons per minute. This power pack comes with an electric starter and a 12V socket. The Joint Zone Dinamo Dual B is built to stand up to the demanding work day in and day out.
Key Features:
Purchase this tool from one of our authorized dealers:
| Dinamo Dual B | |
| Weight (lbs) | 450 |
| Dimensions LxWxH (in) | 25x34x43 |
| Flow (gpm) | 2@10 or 1@20 |
| Pressure (psi) | 2000 |
| Starter | Electric |
| Engine | 35hp B&S |
All Joint Zone products and their associated parts are warranted against defects in material and workmanship for a period of twelve months from the date of purchase. Repair or replacement of defective parts will be approved and determined solely by the manufacturer. This warranty does not cover part failure due to normal wear or tool abuse. This warranty becomes void if maximum pressures and/or flows are exceeded, or guidelines or operating instructions are not followed.
