Hydraulic Underwater Tools

Joint Zone Equipment / Hydraulic Underwater Tools

Joint Zone offers cutting-edge topside and underwater hydraulic tools designed for a wide range of applications in the challenging environments. These durable and efficient tools are specifically engineered to withstand the harsh conditions on job sites and subsea operations, providing reliable solutions for maintenance, construction, and repair tasks. With a focus on performance, user-friendliness, and safety, Joint Zone’s tools offer capabilities such as cutting, grinding, and drilling enabling construction crews and commercial divers to perform precise and efficient operations in challenging conditions. By adhering to stringent industry standards and offering customized solutions, Joint Zone remains a trusted partner in the construction and underwater industry.

Denotes subsea capable

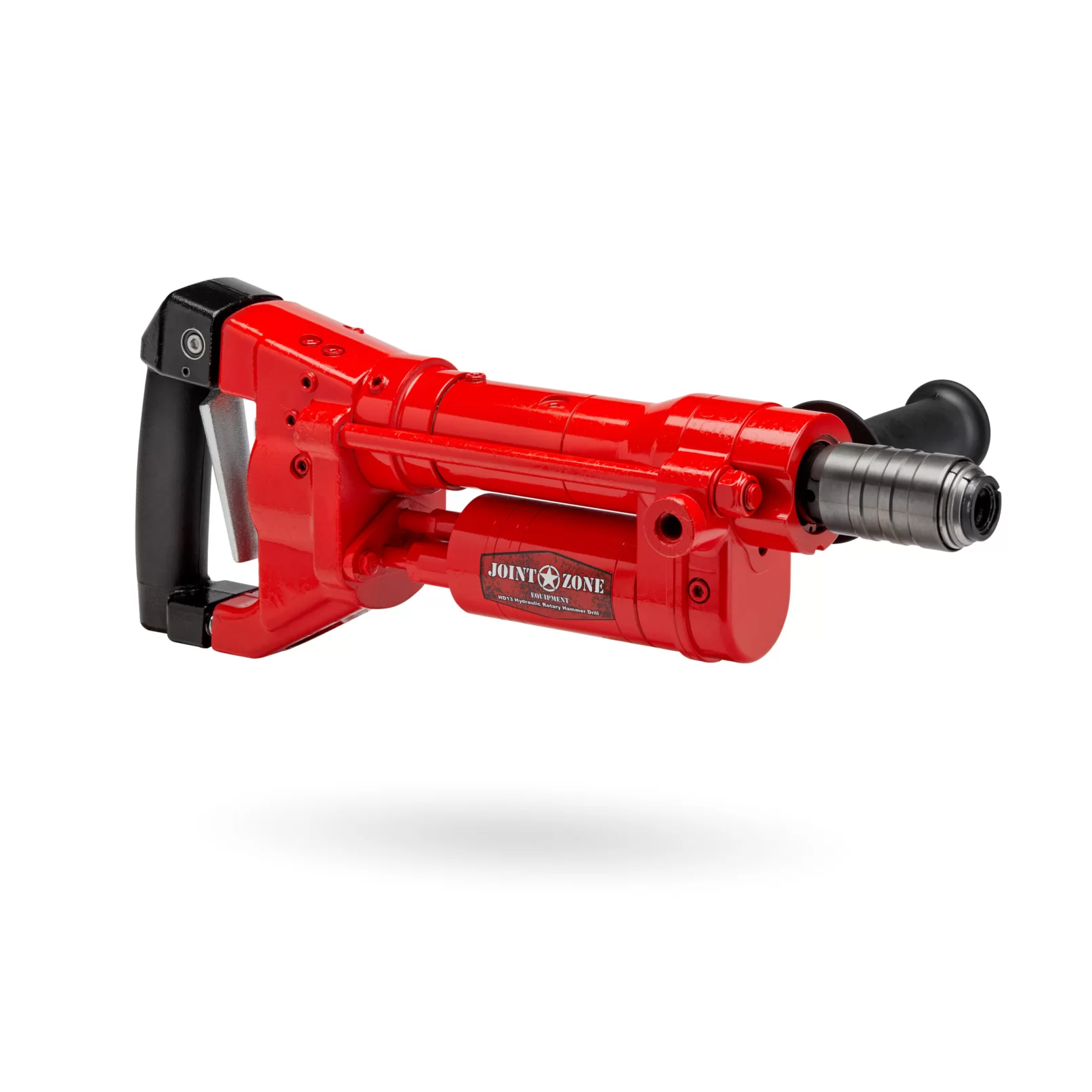

HD13 (2″ SDS Max Rotary Hammer Drill)

The Joint Zone HD13 SDS Max 2″ hydraulic hammer drill is lighter and more compact than any other underwater model on the market, which makes it ideal for all drilling jobs where you need performance, maneuverability, and safety. The Joint Zone HD13 is robust and is constantly lubricated by the oil that powers it. This gives a long operative life and an unmatched reliability. It is equipped with an anti-vibration handle in accordance with the newest CE regulations to assist operators with comfort and safety.

Purchase this tool from one of our authorized dealers:

Bit SizeSDS Max
BPM1200-1800
RPM900-1500
Hydraulic Flow5-8 gpm
Weight29 lb
Length20″
Width7″
Max Pressure2000 psi

DC16/DC20 Cut-Off Saw

The Joint Zone DC16 and DC20 hydraulic cut-off saws are manufactured with an ergonomic and lightweight design. They have an unbeatable weight to power ratio and are equipped with an exclusive hydraulic orbital motor that guarantees high performance even with high cutting load.

Purchase this tool from one of our authorized dealers:

ModelDC16 DC20
Blade Size16″20″
Cutting Depth5.7″8″
Max RPM43002500
Hydraulic Flow8 gpm10 gpm
Pressure2000-2600 psi2000-2600 psi
Weight19 lb 28
Arbor1″1″

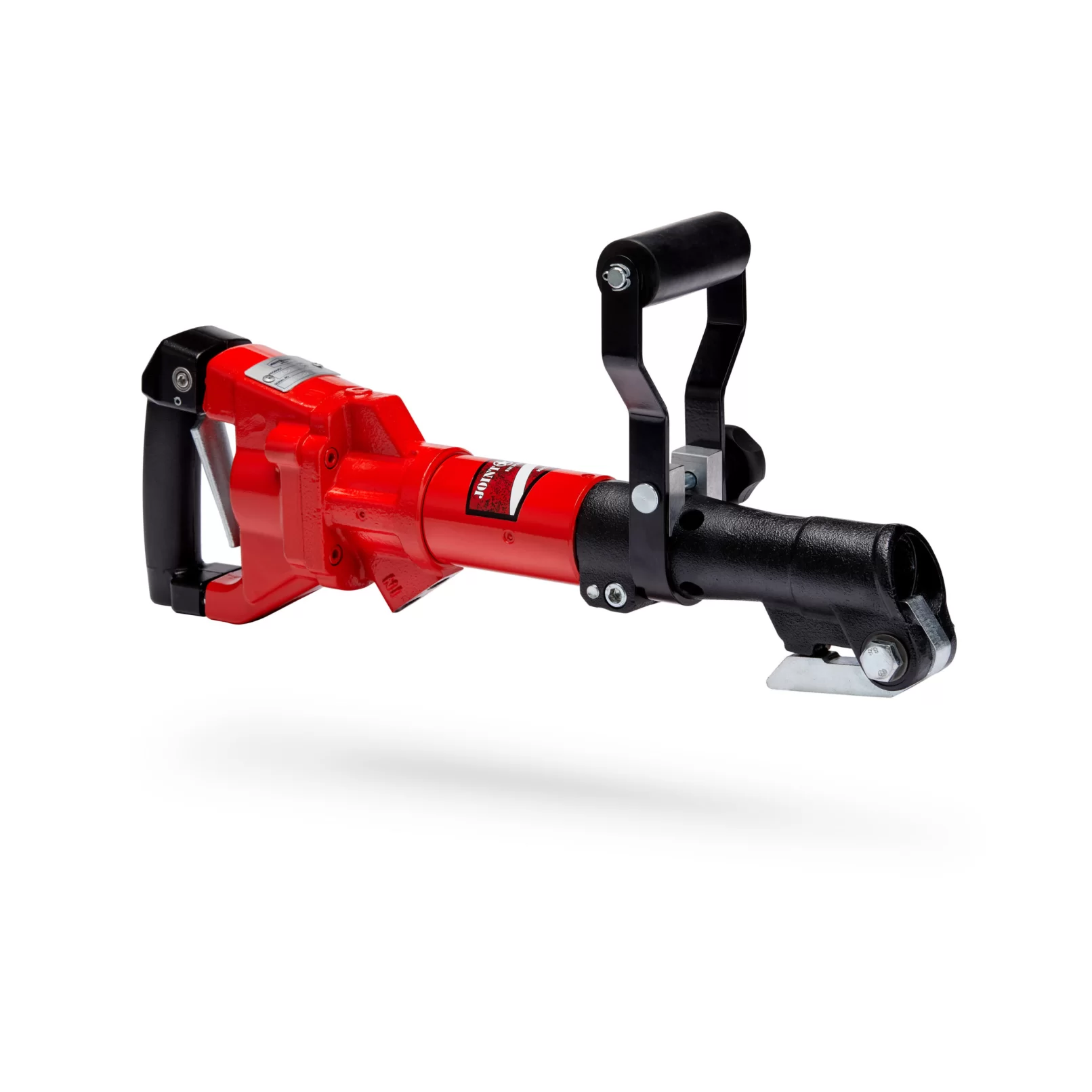

KD12 (30 lb Chipping Hammer)

Equipped with an anti-vibration handle that meets the CE regulations, the KD12 offers additional comfort and safety to the operator. The adjustable side handle ensures optimal control and stability during use, reducing operator fatigue and increasing accuracy.

The Joint Zone KD12 is designed to meet the toughest challenges and is engineered for high performance, reliability, and durability. With advanced hydraulic technology, this chipping hammer delivers unparalleled power and precision for all your chipping needs.

Whether you’re working on a construction site or underwater, the Joint Zone KD12 Hydraulic Chipping Hammer is the perfect tool for all your chipping needs.

Purchase this tool from one of our authorized dealers:

Bit Size7/8″ x 3″ – 1/4
BPM1300-2300
Hydraulic Flow5-8 gpm
Weight30 lb
Length22″
Width7″
Max Pressure2000 psi

AK46G/AK46S Core Drill

The Joint Zone AK46S and AK46G hydraulic core drills are equipped with a safety valve that stops rotation if the core drill becomes blocked. The drills come with a level gauge for drilling vertical and horizontal holes and an on/off  trigger with “locking” capability when using with a drill rig.

Purchase this tool from one of our authorized dealers:

ModelAK46SAK46G
Drill Speed1-Speed1-Speed
Core Drill RPM600-1500400-1000
Bit Size Range1″-4″4″-14″*
Hydraulic Flow5-8 gpm5-8 gpm
Pressure2000-2600 psi2000-2600
Weight18 lbs18 lbs
*Core drill stand recommended when coring over 6″ diameter

20HDS (20″ Concrete Chainsaw)

The Joint Zone 20HDS is a high torque, high speed, hydraulic diamond chainsaw that features a 20″ bar capable of handling a wide variety of applications. Specifically designed for concrete use, including steel re-enforced. With proven reliability, the 20HDS is rugged and easy to maintain and is assembled in the USA. The heavy-duty cast aluminum chain guard prevents a loose or broken chain from being thrown from the saw and its ergonomic handles and guards prevent operator injury and fatigue.

Purchase this tool from one of our authorized dealers:

Model20HDS
Wight29 lbs
Length44 inches
Width13 inches
Hydraulic Flow7-9 gpm
Pressure2000 psi

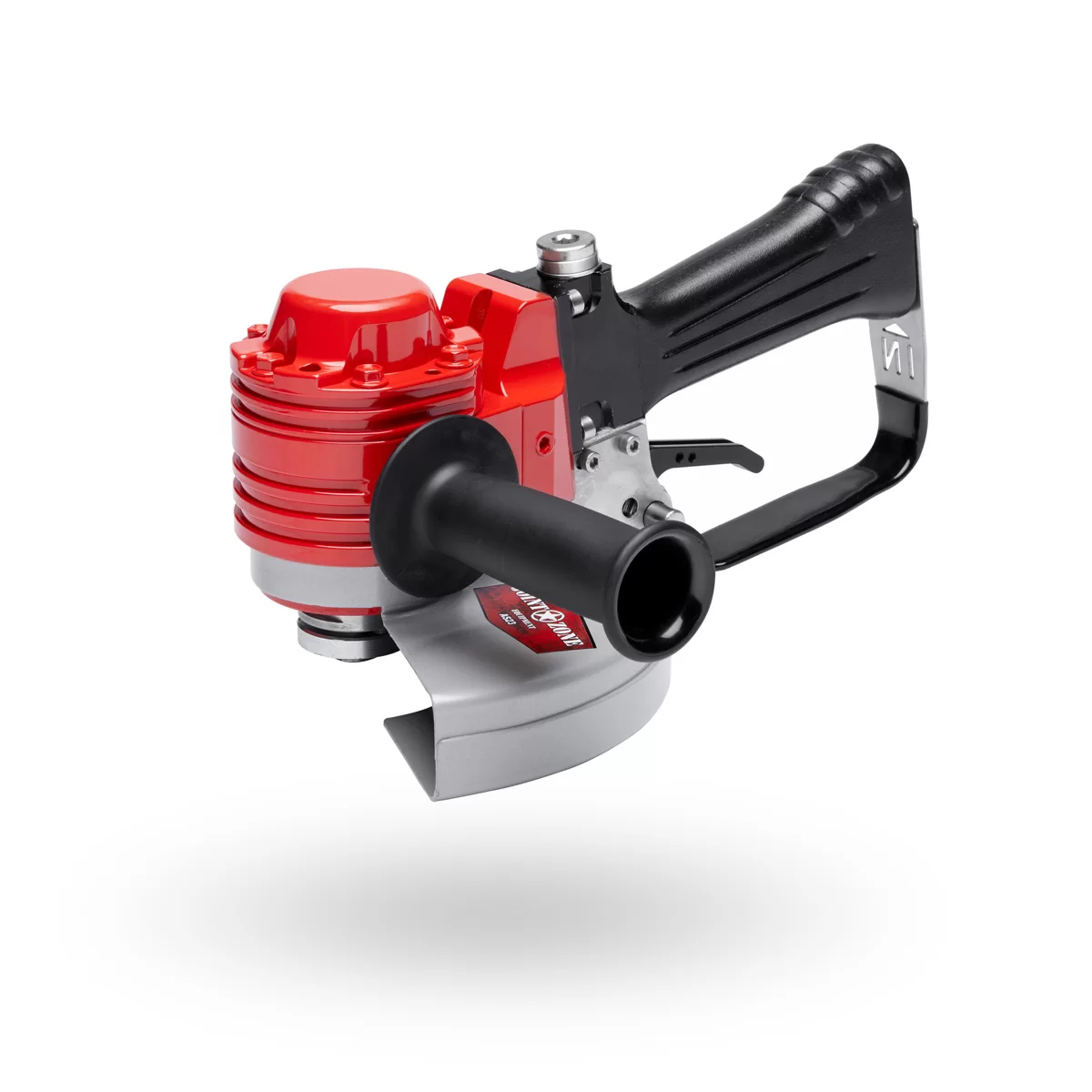

AS23 (9″ Angle Grinder)

The Joint Zone AS23 is a high speed compact angle grinder/cut-off saw with great reliability. The AS23 is irreplaceable in difficult environments, both topside and underwater, for the maintenance of utility networks and metal brushing for preparation of welding. Mounts standard 9” diameter discs or metal brushes for scrubbing or cleaning ship hulls and propellers. With a cutting disc, the AS23 becomes a precise cut-off saw whose light weight and maneuverability allows complete rotation around large pipes easing the cut in narrow spaces. Equipped with an exclusive hydraulic orbital motor that guarantees high performance even with high cutting load.

Purchase this tool from one of our authorized dealers:

Drive7/8″ Spindle
Hydraulic Flow8 gpm
Max RPM2200
Weight11 lb
Length12.5″
Width10″
Max Pressure2000 psi

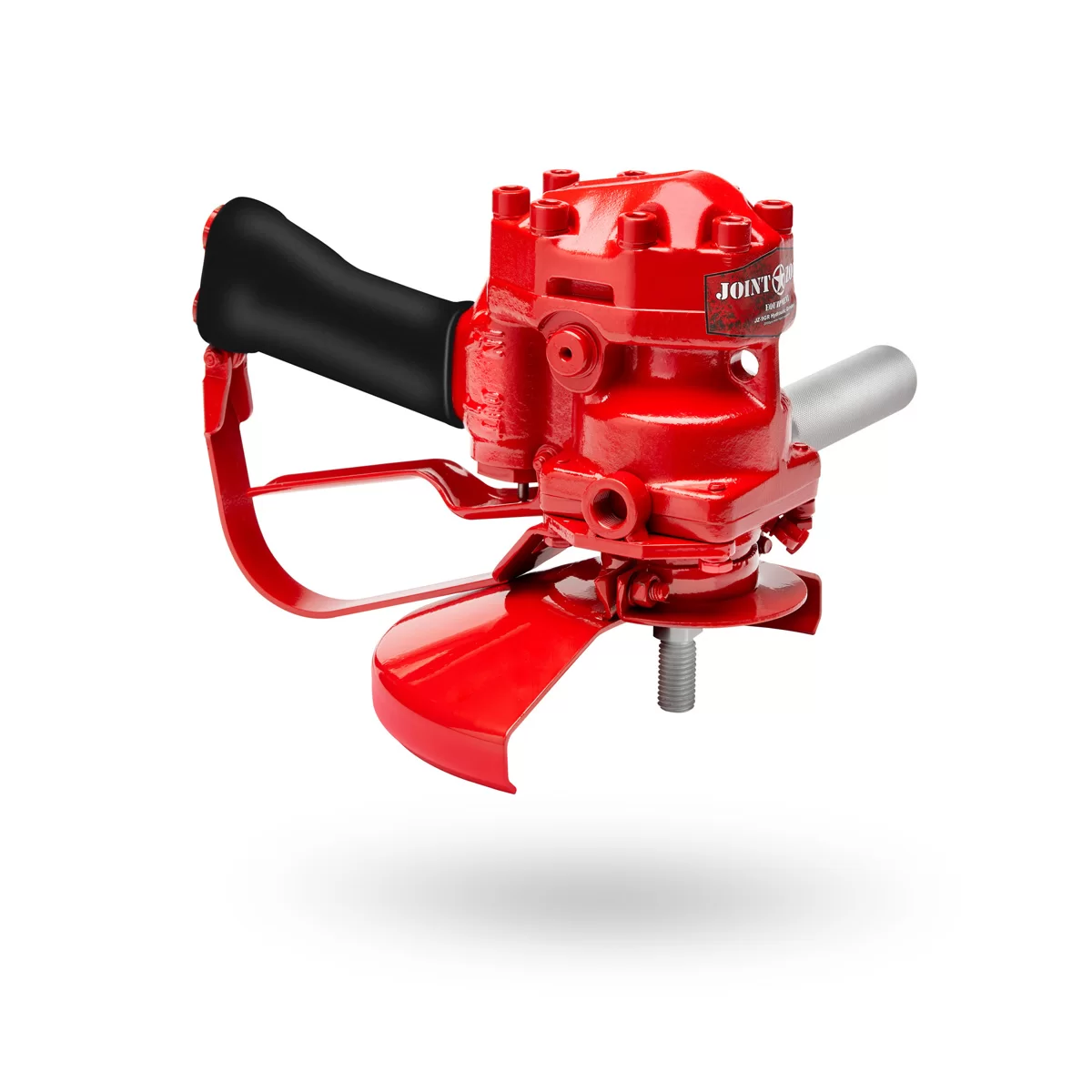

9AG (9″ Angle Grinder)

Manufactured to exacting standards to deliver maximum efficiency, the 9AG has a high torque gear motor which directly drives a 5/8-11 threaded spindle. It has an adjustable 9” guard that accepts either 7” or 9” discs as well as other accessories for cutting, grinding, buffing, and polishing. A plastisol covered handle transmits very little heat and provides a more comfortable grip. The convenient, two position assist handle provides a comfortable handling position from the valve handle.

Purchase this tool from one of our authorized dealers:

Drive5/8-11 Spindle
Hydraulic Flow4-12 gpm
Max RPM3200
Weight15 lb
Length11″
Width10″
Max Pressure2000 psi

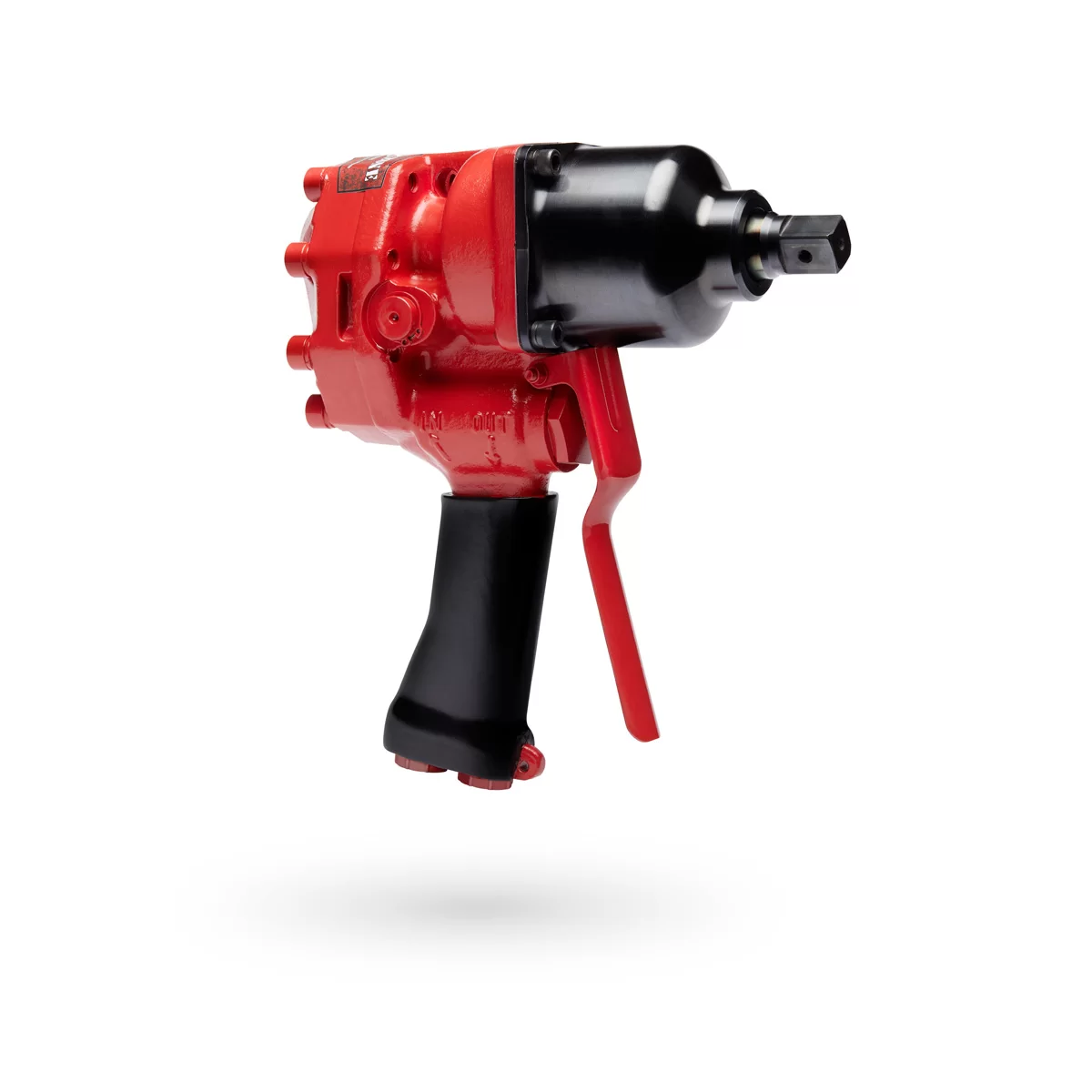

12IW (3/4″ impact wrench)

The high-torque, high-speed, Joint Zone 12IW impact wrench features adjustable impact intensity that can handle a wide variety of applications. Specifically designed for underwater use with all stainless fasteners and sealed impact mechanisms, it works equally well on land. The Joint Zone 12IW is rugged and easy to maintain and its made in the USA impact mechanism is industry proven. A standard reversing valve provides instant reverse and a shock absorbing plastisol covered handle transmits very little heat and provides a more comfortable grip. Just set the direction of rotation to either tighten or loosen and squeeze the trigger for up to 1200 ft lbs of impact torque.

Purchase this tool from one of our authorized dealers:

Drive3/4″ Square Drive
Output Energy250-1200 ft lb (350-1625 Nm)
Hydraulic Flow5-12 gpm
Weight15 lb
Length9.5″
Width4″
Max Pressure2000 psi

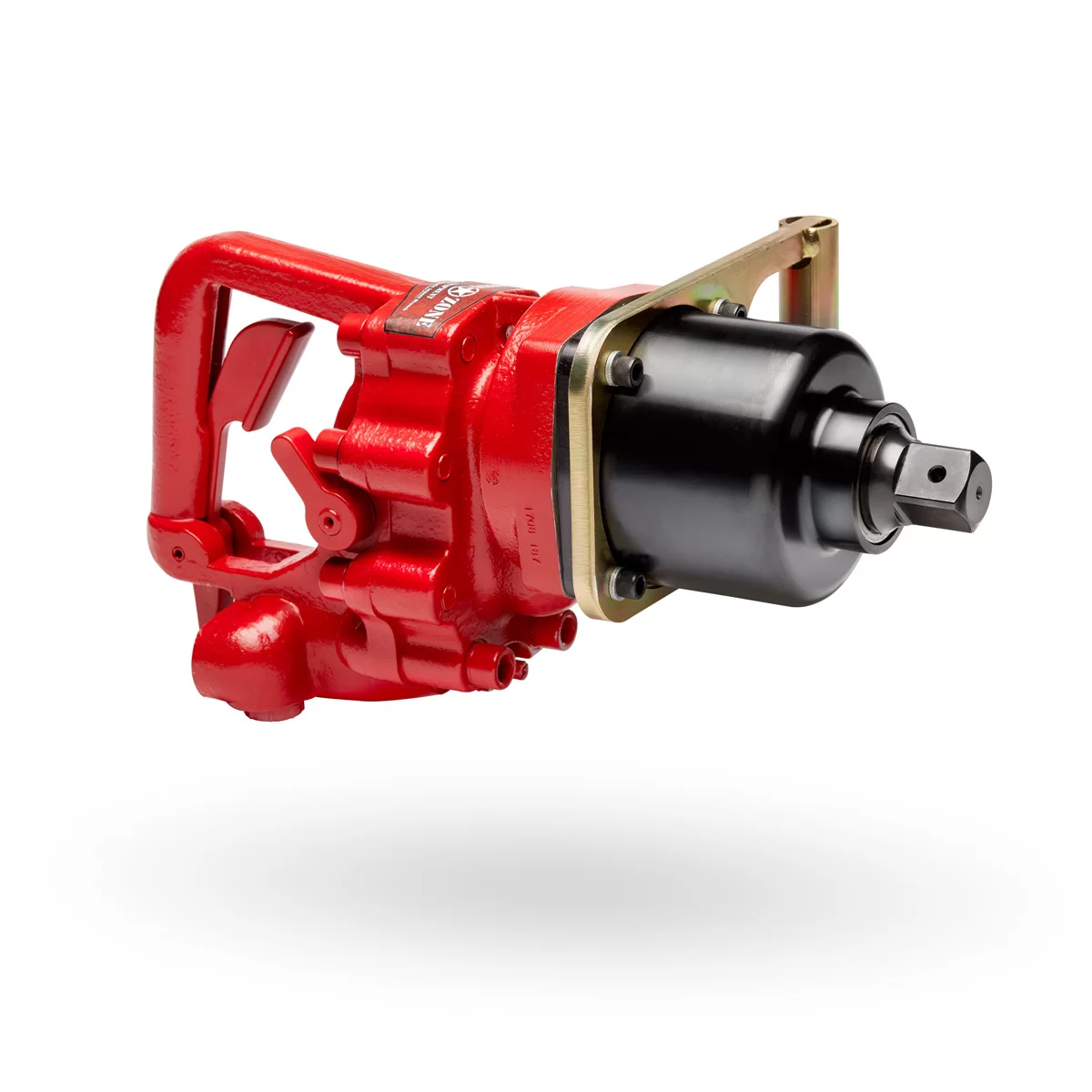

16IW (1″ Impact Wrench)

The Joint Zone 16IW is a heavy duty 1” square drive impact wrench designed for the toughest bolting and heavy-duty driving applications. The 16IW has a proven, made in the USA, impact mechanism that is easy to maintain. The swing hammer design greatly reduces the transmission of torque reducing operator fatigue. It is equipped with A “D” style trigger handle, a multi-position assist handle, and a standard reversing valve that provides instant change from forward to reverse. Just set the direction of rotation to either tighten or loosen and squeeze the trigger for up to 2500 ft lbs of impact torque.

Purchase this tool from one of our authorized dealers:

Drive1″ Square Drive
Output Energy500-2500 ft lb (675-3400 Nm)
Hydraulic Flow7-12 gpm
Weight26 lb
Length14.5″
Width4.5″
Max Pressure2000 psi

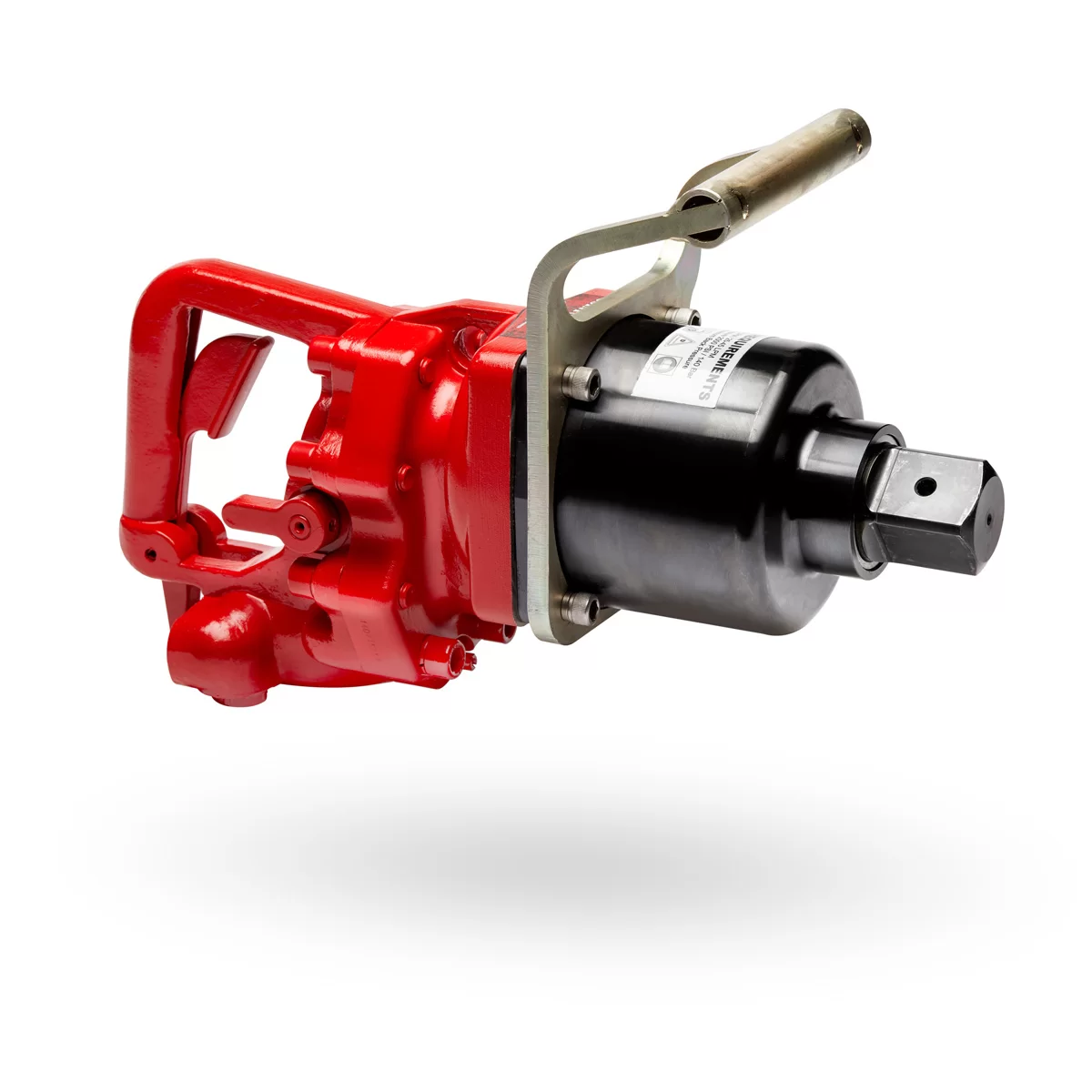

24IW (1.5″ Impact Wrench)

The Joint Zone 24IW is a heavy duty 1-1/2” square drive impact wrench designed for underwater use with all stainless fasteners and sealed impact mechanisms that works equally well on land. The 24IW has a proven, made in the USA, impact mechanism that is easy to maintain. The swing hammer design greatly reduces the transmission of torque reducing operator fatigue. It is equipped with A “D” style trigger handle, a multi-position assist handle, and a standard reversing valve that provides instant change from forward to reverse. Just set the direction of rotation to either tighten or loosen and squeeze the trigger for up to 3500 ft lbs of impact torque.

Purchase this tool from one of our authorized dealers:

Drive1.5″ Square Drive
Output Energy750-3500 ft lb (1000-4750 Nm)
Hydraulic Flow7-12 gpm
Weight42 lb
Length14.5″
Width4.5″
Max Pressure2000 psi



WARRANTY

All Joint Zone products and their associated parts are warranted against defects in material and workmanship for a period of twelve months from the date of purchase. Repair or replacement of defective parts will be approved and determined solely by the manufacturer. This warranty does not cover part failure due to normal wear or tool abuse. This warranty becomes void if maximum pressures and/or flows are exceeded, or guidelines or operating instructions are not followed.
